FEATURES |
|
|
|
 |
By combination use with the SUPER CURE 501S(UVF-501S)
very uniform, accurate and high power surface
irradiation is possible. |
|
|
|
Useful for pre-curing of wafers, stitching
of glasses, etc. |
|
|
|
|
|
|
|
SPECIFICATIONS |
|
|
|
| MODEL |
MAX.SPOT |
UV INTENSITY |
UNIFORMNESS OF
IRRADIATED AREA |

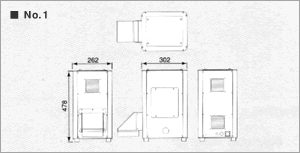

DRAWING |
| EL-80 |
80mm |
60mW/cm² |
±5% |
No.1 |
| EL-100 |
100mm |
40mW/cm² |
No.1 |
| EL-125 |
125mm |
25mW/cm² |
No.2 |
| EL-160 |
160mm |
16mW/cm² |
No.2 |
| EL-200 |
200mm |
12mW/cm² |
No.2 |
|
|
|
|
|
|
|
