FEATURES |
|
|
|
![](emaru.gif) |
By mounting the light collectiong lens on
the light emitting end of the light guide,
irradiation of micro point area or long distance
irradiation is possible. |
|
|
![](emaru.gif) |
Short focal length and long focal length
lenses as well as uniform irradiation lenses
are available as standard optional accessory. |
|
|
![](emaru.gif) |
Special custom specified light collecting
lenses can be designed and manufactured. |
|
|
|
|
|
![](shikaku.gif) |

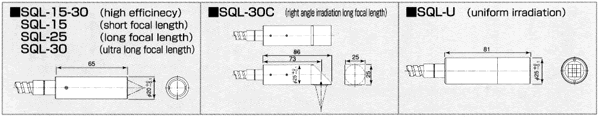

STANDARD TYPE LIGHT COLLECTING LENS DIMENSIONS |
|
|
|
![](euv3a.gif) |
|
|
|
|
![](shikaku.gif) |

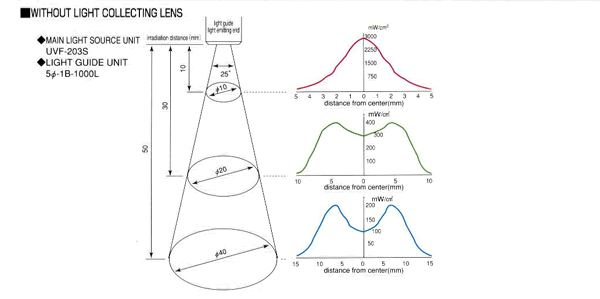

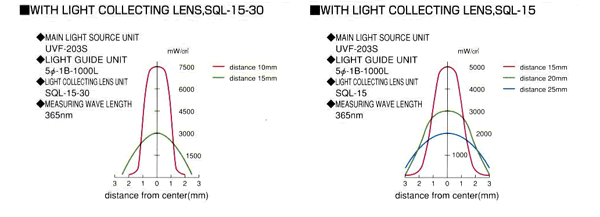

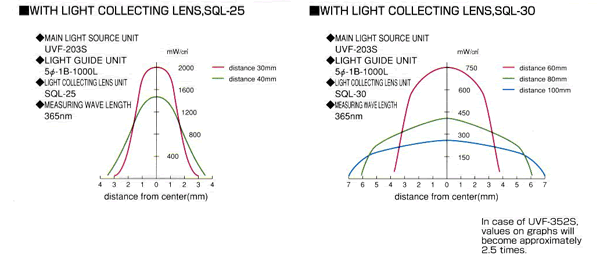

DATA OF IRRADIATION DISTANCE · IRRADIATION
AREA · UV INTENSITY |
|
|
|
|
|
