FEATURES |
|
|
|
 |
This is the relay amplifier box for the multi-point
type UV monitors. Received UV light intensity
is converted to electric signal for transmission.
This allows distance between the light receiving
inlet and the controller to 10 meters maximum. |
|
|
|
Light weight and compact design permits installation
beneath or at backside of the production
line or on the robot arm, etc. |
|
|
|
|
|
|

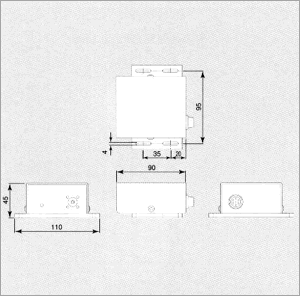

EXTERNAL DIMENSIONS (mm) |
|
|
|
 |
|
|
|
|
SPECIFICATIONS |
|
|
|
| MODEL |
UVM-SB254 |
UVM-SB365 |
| MEASURING WAVE |
254nm |
365nm |
| APPLICABLE MODEL |
UVM-MP · UVM-MP-J |
| WEIGHT |
apprx.0.5kg |
|
|
|
|
|
|
|
