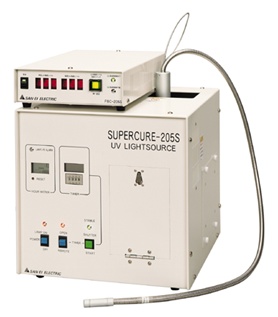

![UVF-205S](../uv10b.jpg) |
|
![](shikaku.gif) |
FEATURES |
|
|
|
![](emaru.gif) |
By use of the light guide with the quartz
sensor fiber, feed-back control and monitoring
of UV irradiation intensity is possible.
Also setting of UV intensity and meaurement
by personal computer is possible. |
|
|
![](emaru.gif) |
The one-touch mounting type lamp dose not
require troublesome light axis alignment.
Lamp replacement time is extremely short. |
|
|
![](emaru.gif) |
Abundant remote control functions for fully
auto-matic operation are standard. |
|
|
|
![](shikaku.gif) |
SPECIFICATIONS |
|
|
|
UV INTENSITY *1 |
more than 4000mW/cm² |
LAMP |
one-touch mounting high stability 200W mercury
xenon lamp |
LAMP LIFE *2 |
average 4000hours |
RATED
INPUT · POWER
CONSUMPTION
*3 |
AC100/200V 50/60Hz 1![](ff.gif) 340W |
WEIGHT |
apprx.15kg |
|
|
|
|
*1 Value measured at 10mm from the light
emitting end of the light guide unit(5 -1B1000L) (center wave length=365nm)
*2 Accumulated running hours when lamp light
output is decreased to 50% of initial value.
*3 200V input voltage
type must be specified
with order. |
|
|
